12000 LBS Dual Speed Winch
Home    |    PRODUCTS    |    On-Road Vehicle    |    Winch    |    12000 LBS Dual Speed Winch
D12000 SC

D12000 SR/D12000 SRD


B-D12000 SR




D12000 SC/ D12000 SR/D12000 SRD/

B-D12000 SR

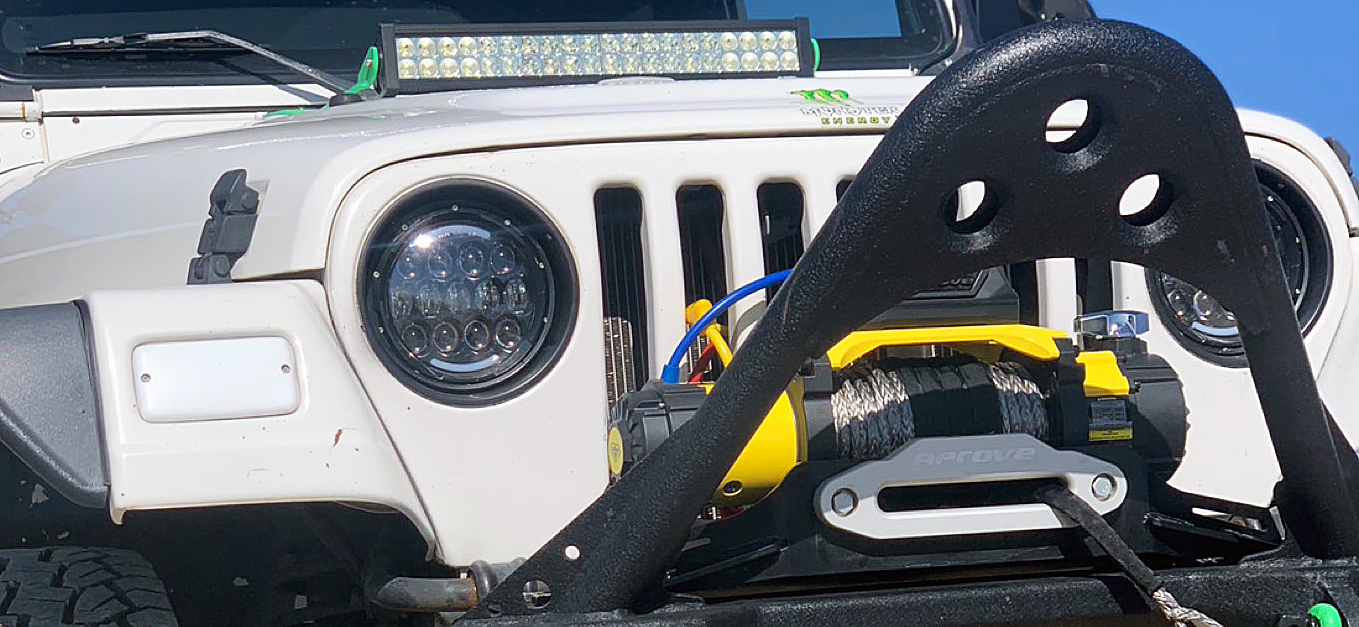

APROVE winch is designed with the advanced dual speed technology, combined with style and unique mechanical design.

FEATURES
  • DUAL SPEED - High: 19.6m/min, Low: 10.3m/min.
  • IP67 WATERPROOF
  • WIRELESS REMOTE
  • LOW NOISE < 95 dB
  • 150A OVERCURRENT PROTECTION
  • LARGER, ERGONOMIC KNOB DESIGN
  • PASSING DURABILITY TEST
  • STRICT QUALITY CONTROL BEFORE PACKAGING AND SHIPPING
  • DYNEEMA CABLE IS ALSO AVAILABLE


Specifications:
1) Rated Line Pull: 12000 lb(5455 kg) Single-line

2) Motor: 12V DC, 6.0 HP Series Wound
3)  Geartrain: 3-Stage Planetary
4)  Gear Ratio: 230.4:1 at Low Speed, 115.2:1 at High Speed.
5)  Clutch (freespooling): Sliding Ring Gear
6)  Brake: Auto. Load Holding
7)  Drum Diameter/ Length: 2.5" / 8.8" (64mmX223mm)
8)  Wire Rope: 85.28' , 0.37" diameter (26m , 9.5mm dia.) (for D12000 SC)
9) Synthetic Rope: 85.28' , 0.35" Diameter (26m , 9.0mm dia.) (for D12000 SR/D12000 SRD)
10) Fairlead: 4-Way Roller Fairlead (for D12000 SC)
11) Fairlead: Aluminum Hawse Fairlead  (for D12000 SR/D12000 SRD)
12) Wireless/ Wired Remote
13) Recommended Battery: 12VDC Minimum 650 CCA
14) Battery Leads: 3.5 Gauge, 6' (1.8m) Long
15) Mounting Bolt Pattern: 10" X 4.5" (254mm X 114.3mm)
16) IP Rating: IP 67 Waterpoof for Winch Body
17) Overcurrent Protection

Note: Winch mount is "not" included.


Performance Data at Low Speed (Gear Ratio: 230.4:1)
Line Pull,lbs(kgs) Line Speed,m(ft) Motor(Amps)
0 10.3 (33.7) 79
3000 (1362) 3.5 (11.5) 177
6000 (2724) 2.4 (8.0) 259
9000 (4086) 1.8 (5.8) 330
12000 (5448) 1.2 (3.9) 425


Performance Data at High Speed (Gear Ratio: 115.2:1)
Line Pull,lbs(kgs) Line Speed,m(ft) Motor(Amps)
0 19.6 (64.2) 80


Above performance specs are based on first layer of drum
Layer Rated Line Pull,lbs(kgs) Total Rope On Drum,ft(m)
1 12000 (5455) 17.6 (5.4)
2 9530 (4332) 37 (11.4)
3 7920 (3600) 63 (19.4)
4 6770 (3077) 88 (26.8)

* Specifications are subjected to change without prior notice!
