2500 LBS Winch

Home | PRODUCTS | Off-Road Vehicle | Winches | 2500 LBS Winch

P/N: S2500 SC

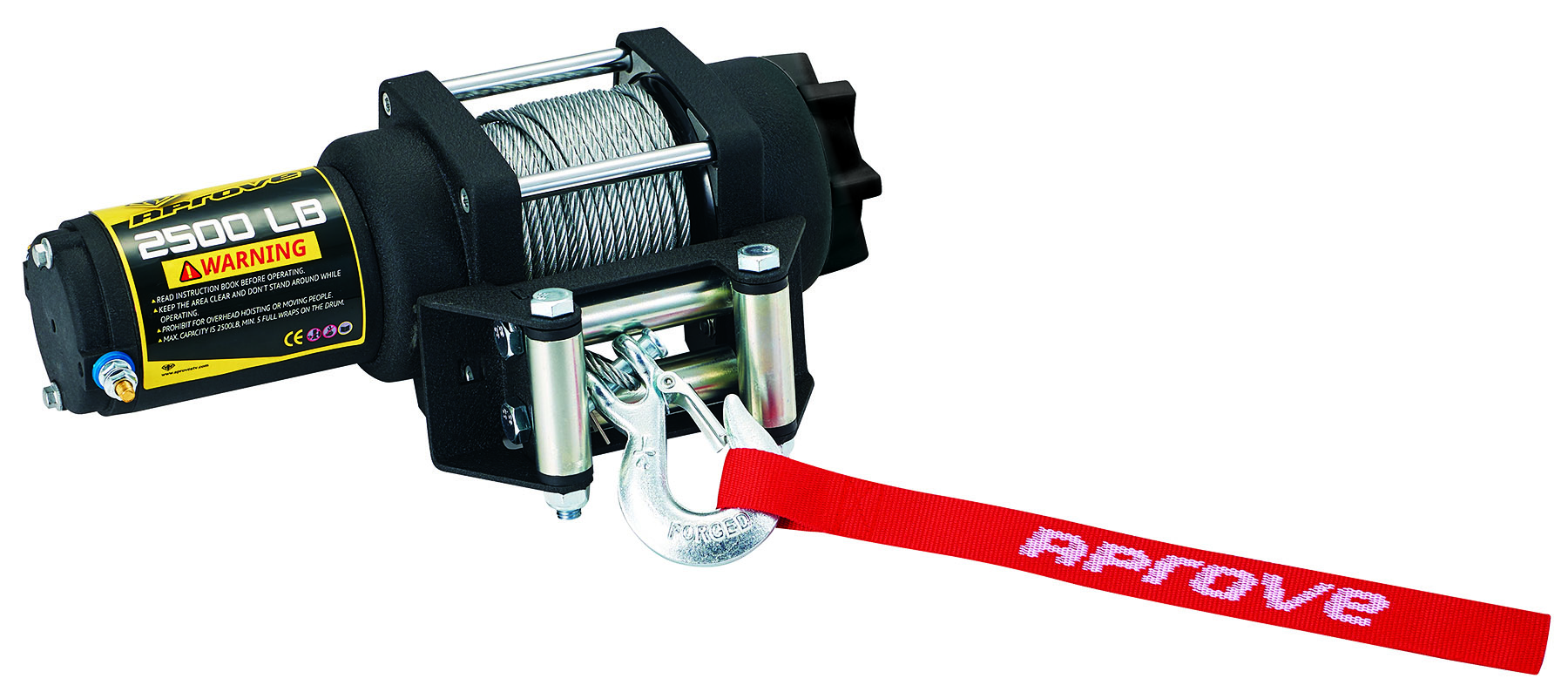

2500 lbs Winch w/ Steel Cable

P/N: S2500 SR/S2500 SRD
2500 lbs Winch w/Synthetic Rope or Dyneema Rope

Specifications:

1) Rated Line Pull: 2500lb (1133kg) Single-line
2) Motor: 12V DC, 0.9 HP Series Wound
3) Geartrain: 3-Stage Planetary
4) Gear Ratio: 136:1
5) Wire Rope: 4.8mm*15.24M
6) Synthetic Rope: 5mm*15.24M
7) Farilead: 4-Way Roller Fairlead (for S2500 SC)
8) Fairlead: Aluminum Hawse Fairlead (for S2500 SR/S2500 SRD)
9) Winch Dimensions: 337mm x 113mm x 115.8mm
10) IP67 Waterproof for Winch Body
11) Low Noise Level < 80 dB
12) Easier Replacement: Able to Replace the Knob from Outside

Endure following tests:

Dust Spray Test
Water Spray Test
High/Low Temperature Test for Winch Body and Accessories ( - 40^oC ~ 80^oC)
1500 Hours' UV Test
72 hours Salt Spray Test for Steel Cable and Hardware

**Winch Mount Kits are Not Included. Bolt Pattern for Winch: 3.00" x 4.875"(4 Holes)
